We're extremely excited by how things are going with this project. Our Kickstarter campaign has successfully funded on June 2! We will send you newsletter when the Jadelabo J1 Pre-order is available.

Printing

Print Head System

Independent Dual Extruder System (IDEX)

Build Volume (W×D×H)

Single Extruder Mode / Support Mode / Multimaterial Mode: 320x210x200 mm (12.6x8.3x7.9 in)

Duplication Mode: 160x210x200 mm (6.3x8.3x7.9 in)

Mirror Mode: 150x210x200 mm (5.9x8.3x7.9 in)

Print Head Travel Speed

Up to 150 mm/s

Nozzle Diameter

Layer Height

Nozzle Temperature

0.4mm

0.05 - 0.3 mm

Up to 300 ℃

Self-Test Procedure, Power Loss Detection & Recovery, Filament Runout Detection & Recovery, Filament Tangles Detection & Recovery, Backup Mode, Avoid-Losing-Both Mode, Pause Recovery (the power could be turned off during the pause)

Heated Bed Temperature

Smart Features

Up to 110 ℃

Printer

Type

Fully Assembled

Aluminum Alloys

Frame Material

Connectivity

Wi-Fi, USB Cable, USB Flash Drive

Touchscreen

5" Full-Color Capacitive, 1280 x 720

ARM Cortex-A53

1GB RAM, 8GB EMMC

Controller Board

32 Bit Processor

ARM Cortex-M4

TMC2209

Materials

Filament Diameter

1.75mm

Supported Materials

PLA / PETG / ABS / ASA / TPU / PVA / PC / PA

Electrical

Input

100 - 240 V, 6A max., 50 / 60 Hz

Power Consumption

400W max.

Software & Firmware

Slicer

Jadelabo Cura. Or third-party slicers.

Windows, Mac, Linux

Operating System

Supported Files

STL, OBJ, 3MF, AMF

Marlin

Firmware

Open Source

Software, Firmware

Notice: The specifications listed might be slightly changed in any meaningful way when we refine these products.

Independent Dual Extruder (IDEX)

CPU
ARM Cortex-M4
ARM Cortex-A53
Memory

1GB RAM

8GB EMMC

Rated Power

400W

Motor Driver

TMC2209

Noiseless Operation

Stall Detection

Multimaterial Mode

You never know what you can make until you try. Combine materials to obtain different mechanical properties or colors in one single print. Make something new, explorative, and fabulous.

Mirror Mode

Work independently. Work efficiently. The IDEX mirror mode enables the dual extruder to work symmetrically and simultaneously. When printing with mirrored objects or symmetrical objects in J1, you can save half the printing time.

Duplication Mode

Double the production capacity. When printing identical objects, you can print twice as many parts as you would get with a regular dual-extruder 3D printer. So it doubles the printing efficiency without adding the cost of buying another 3D printer.

Backup Mode and More

Two is better than one. When printing in single mode, you can set J1 into backup mode. If the print head at work gets clogged or its filament runs out, J1 would stop it and start the other print head to resume the print automatically. More modes are being tested internally and will be introduced when they are ready.

Materials

Print Heads

A Wide Range of Materials

Print a variety of materials with ease. From the print heads, heated bed, motion mechanism, and enclosure addon, all the components and structures in J1 are carefully designed to work efficiently with various materials.

Support:

PLA / PETG / ABS / ASA / TPU / PVA / PC / PA

In Testing:

PA-CF / PA-GF

Performance

Direct Drive & Dual Drive

J1 has great compatibility with a broader range of materials and a fine control of retraction. The direct drive setup offers a highly responsive extrusion system. As the dual drive setup grips and controls the filament from both sides, the setup can deliver a consistent flow of filament. Combining these two setups, J1 can print flexible material with better results.

Compact & Integrated System

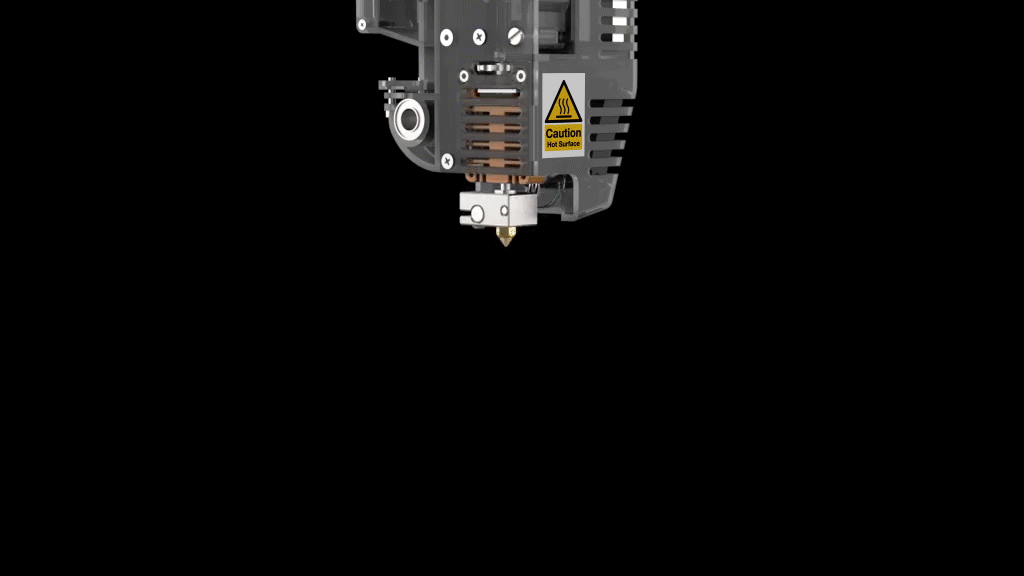

J1's print heads are packed with various powerful features to deliver a reliable and easy-to-use printing experience. Covered with strong and transparent housings, the print heads allow you to see through the head to know filament status.

Precise Nozzle Height Calibration

It will result in a failed print if your dual extruder is not aligned correctly. However, for most IDEX 3D printers, dual extruder calibration is quite complicated and difficult. For J1, we've designed a special structure for precise nozzle calibration. You can adjust the nozzle height much more precisely by following the instructions on the touchscreen to turn the knob to a specific value.

Jams & Filament Runout Sensor

Each print head in J1 includes a filament sensor to detect, autopause, and alert you about not only filament runout but also filament jams. The sensor can help prevent ruining your prints or the hotend, save the material and power. In the case of filament running out, J1 can even let you resume the print after the problem is fixed.

Various Sizes & Easy-to-Detach Hotends

J1 is not only compatible with nozzles in various diameters, but also enabling you to use two different nozzles in one single print, which is a super cool feature using the IDEX system. You can use the 0.4 mm nozzle for daily prints, use the 0.2 mm nozzle to obtain the finest details, and use the 0.6 mm and 0.8 mm nozzles to speed up the print or print stronger parts.

Specs

Sign Up for Pre-order News
Support Mode

You can use a secondary material as supports to print complex geometries and get smoother surface details. The support material can be dissolvable materials like PVA. You can also save on premium materials by printing them on the main body, and printing supports with a regular, cheaper material.

Build Plate

Glass Plate with PEI Print Surface

Featuring a glass plate with the Polyetherimide (PEI) print surface, J1 offers an ideal build plate for 3D printing with a wide variety of materials. The glass plate is reliably flat, thermally stable, and extremely durable. The PEI print surface offers excellent adhesion and easier print removal for a printed object.

Prototypes, Launch Month, Community Topics



Read More

Deep Dive Into The Machine Body

Watch Video

Make a Better IDEX 3D Printer

Watch Video

The Latest News
Touchscreen
Intuitive and Powerful

J1 features a 5" full-color capacitive IPS touchscreen. It provides an initial setup wizard, clear illustrations, instant notifications, real-time machine and print status to give you a better printing experience. Running Tina Linux, it offers various features that let you easily control J1 with a few touches.

Calibration
More Precise and Quicker

Calibrating an IDEX 3D printer used to be a tedious process, requiring a lot of manual work and experience. For both bed and dual extruder calibrations, J1 provides a quicker and semi-auto way to achieve precise calibration.

For more details, join our mailing list to learn more.

Jadelabo J1

Independent Dual Extruder 3D Printer

Beautiful. Powerful. Smart.
